Material and manufacturing

Body material: High-density polyethylene (HDPE). Manufacturing process: HDPE blow moulding with fluorination treatment. Surface: Smooth moulded walls with defined label panels; the container geometry and closure interface follow the selected model. Closure systems: Aluminium-foil liners, PE foam liners or separate inner plugs are matched to their stated bottle configurations. Screw-cap and tamper-band structures remain specific to each model.

Structures and closure choices

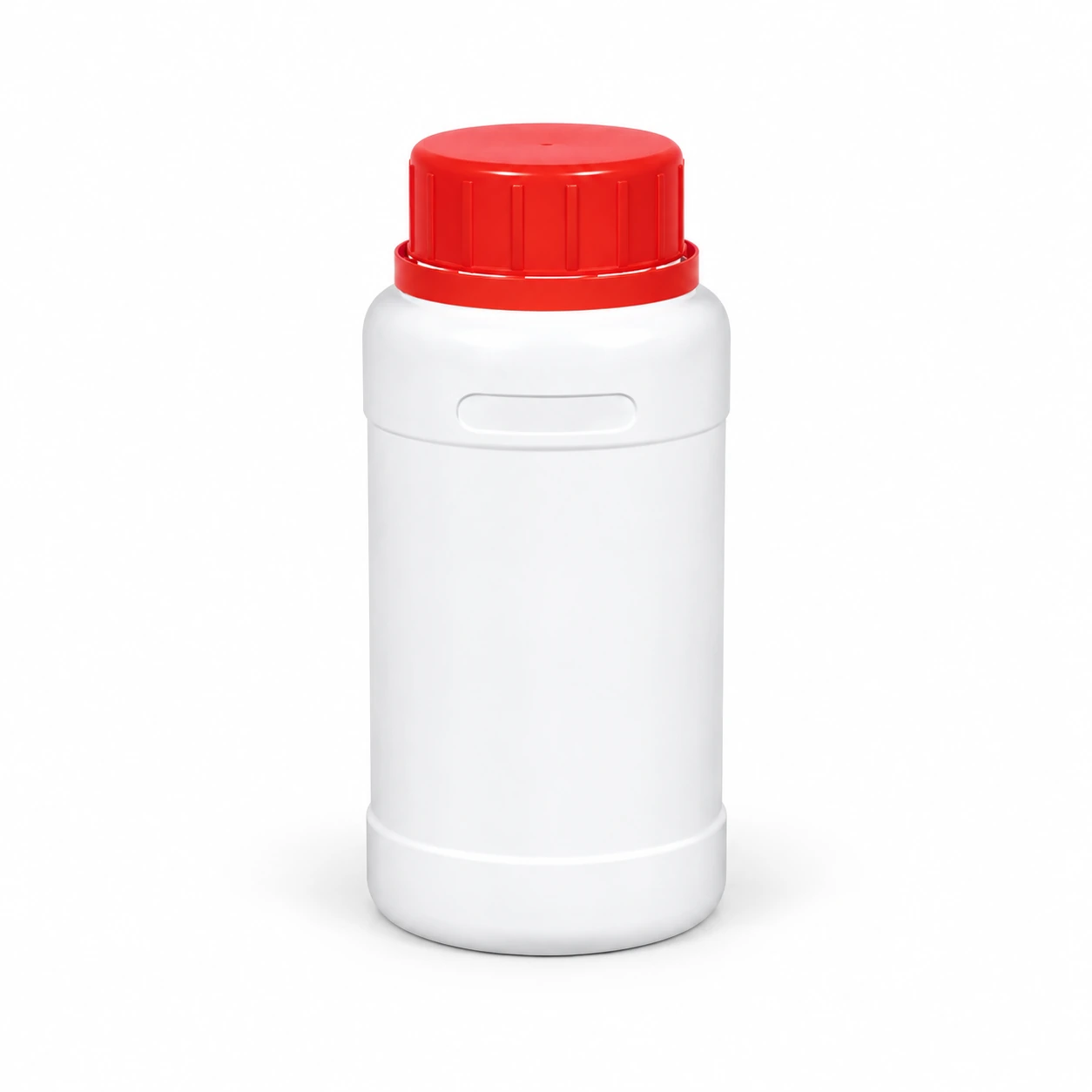

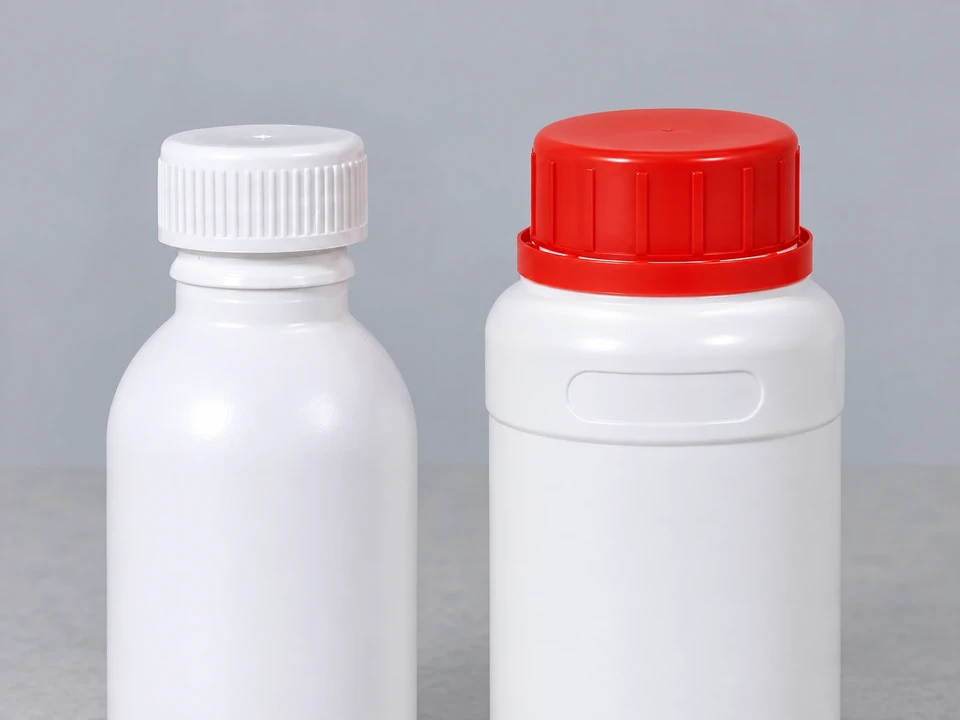

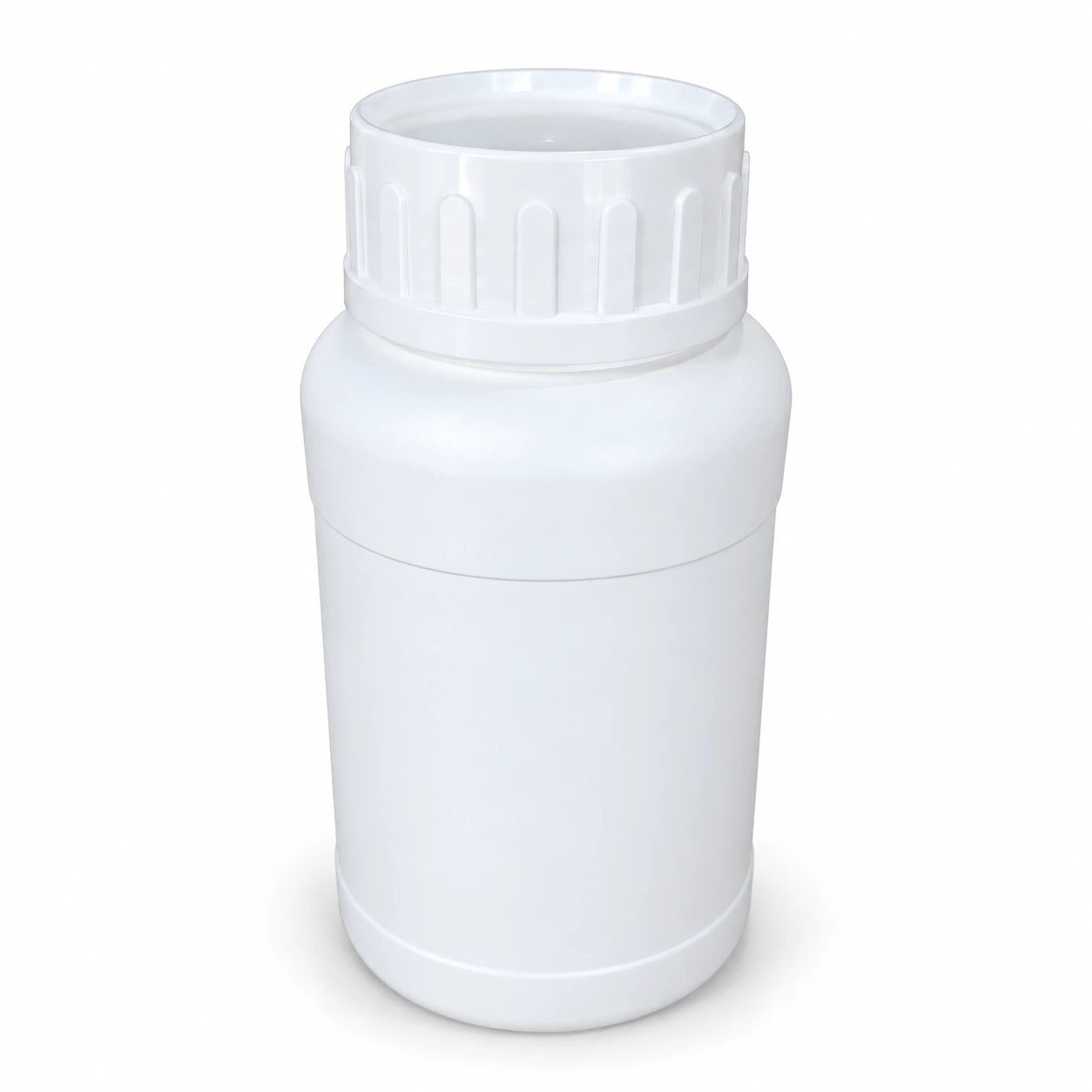

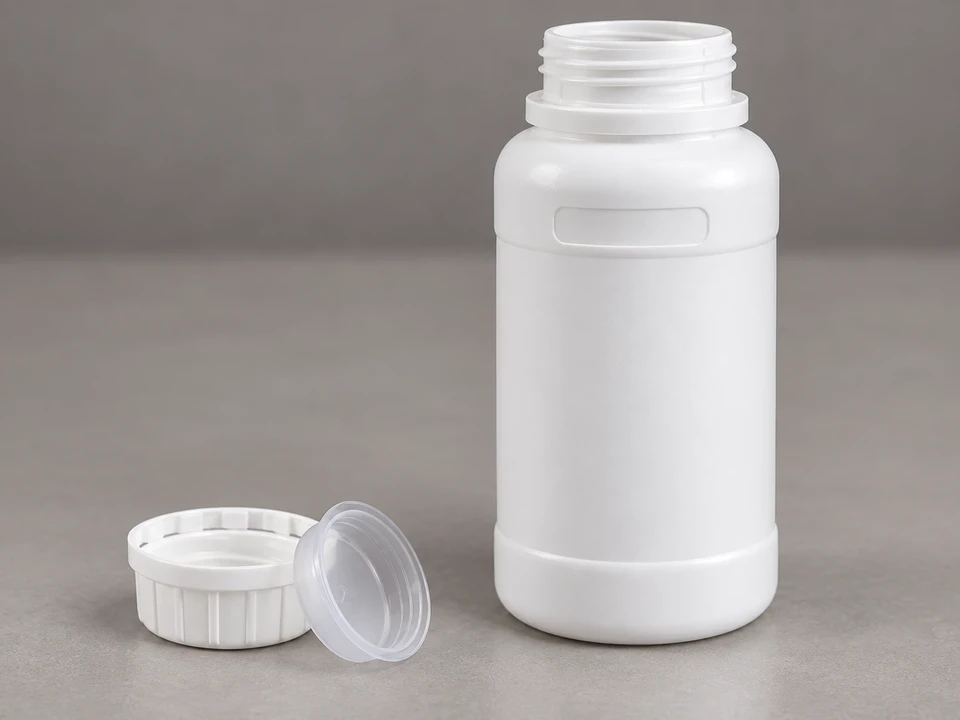

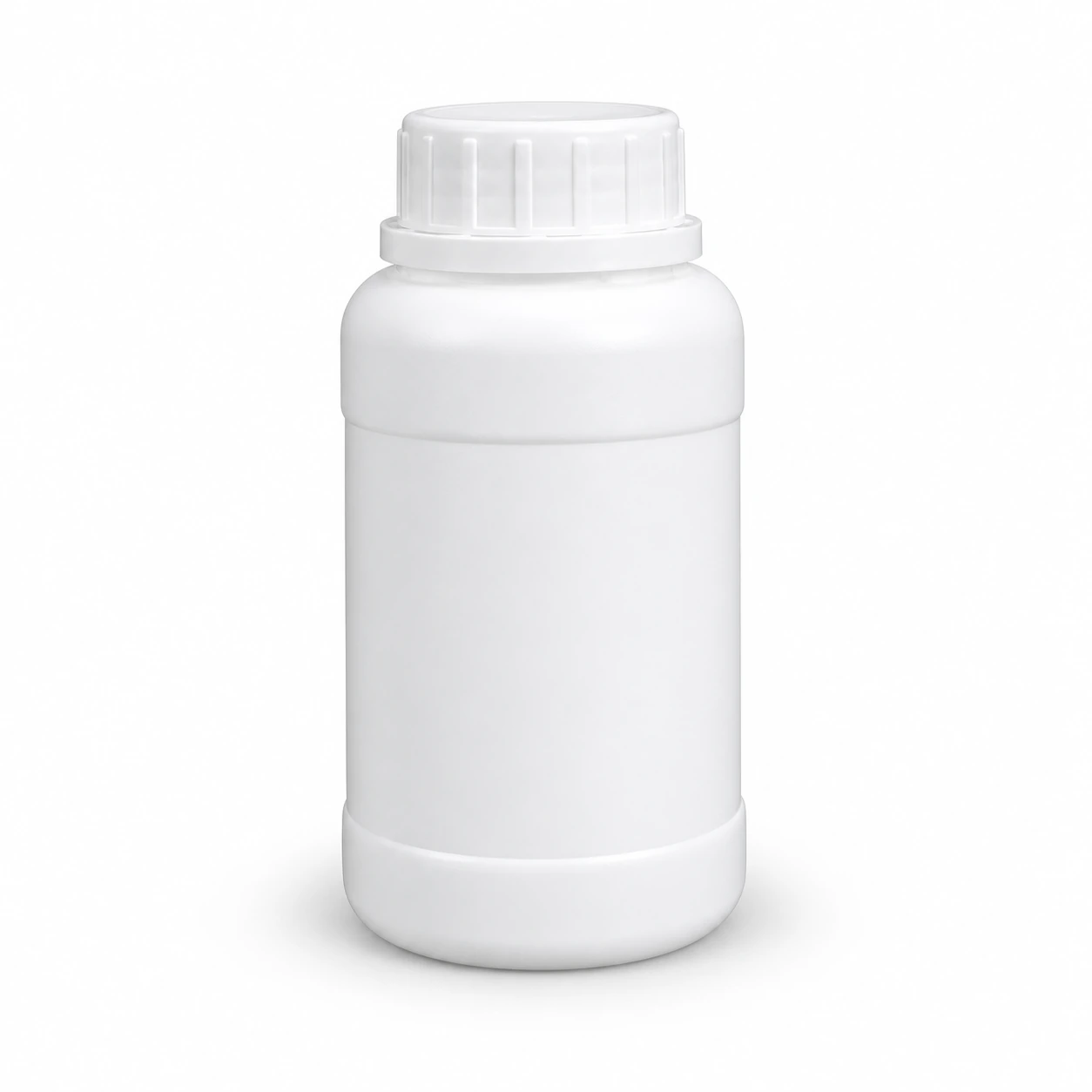

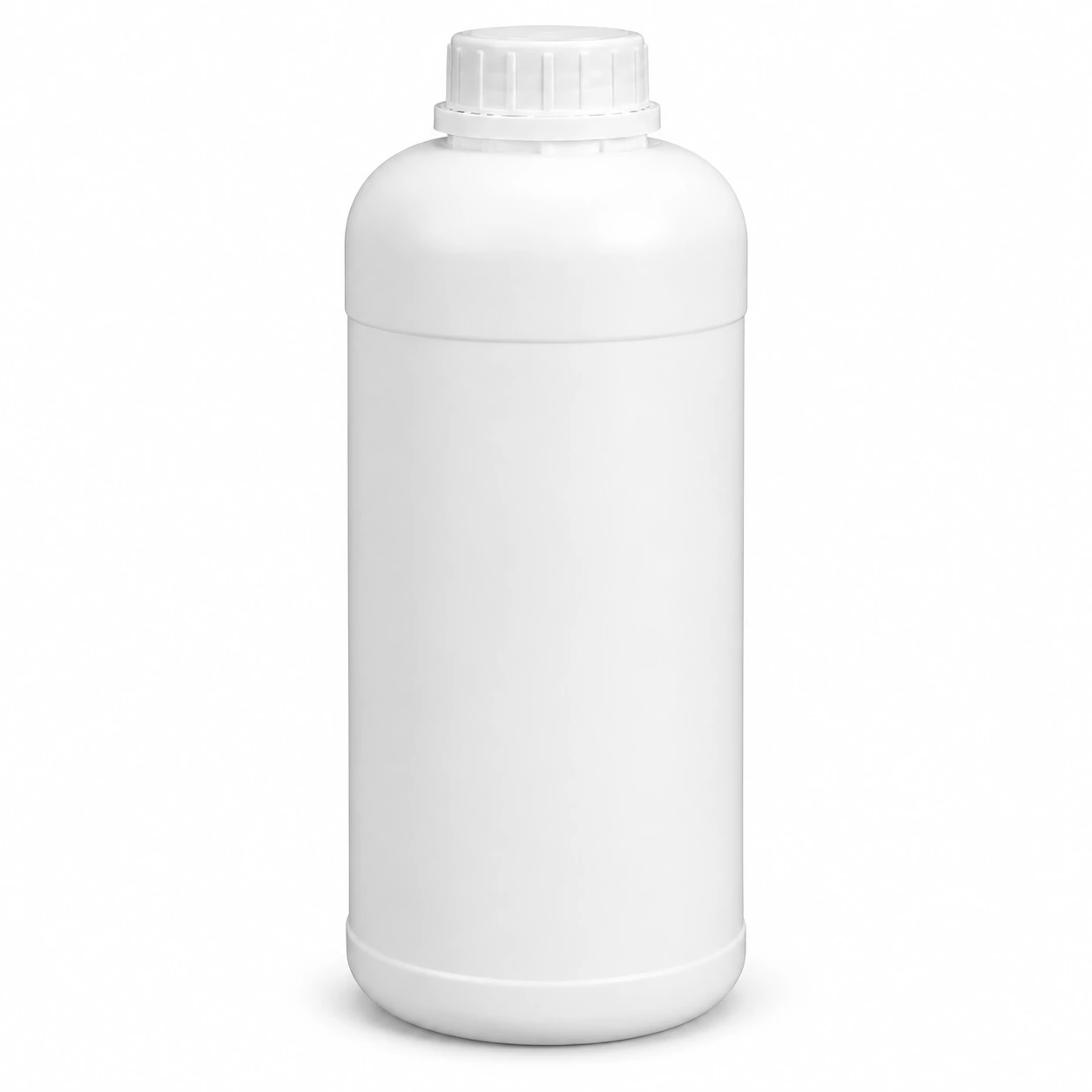

• Slim-neck format: 100 ml milky-white bottle with a ribbed screw cap and aluminium-foil liner. • Type A: Milky-white body, defined shoulder panel, lower body band and coloured ribbed cap with tamper band. Opening inside diameter: 32.8 ± 0.5 mm. Liner choices are aluminium foil or PE foam. • Inner-plug/white-cap range: Milky-white cylindrical body with lower base band. The 250 ml and 1,000 ml models have separate inner plugs and outer caps. The 300 ml model uses a white cap with tamper band.

Specifications

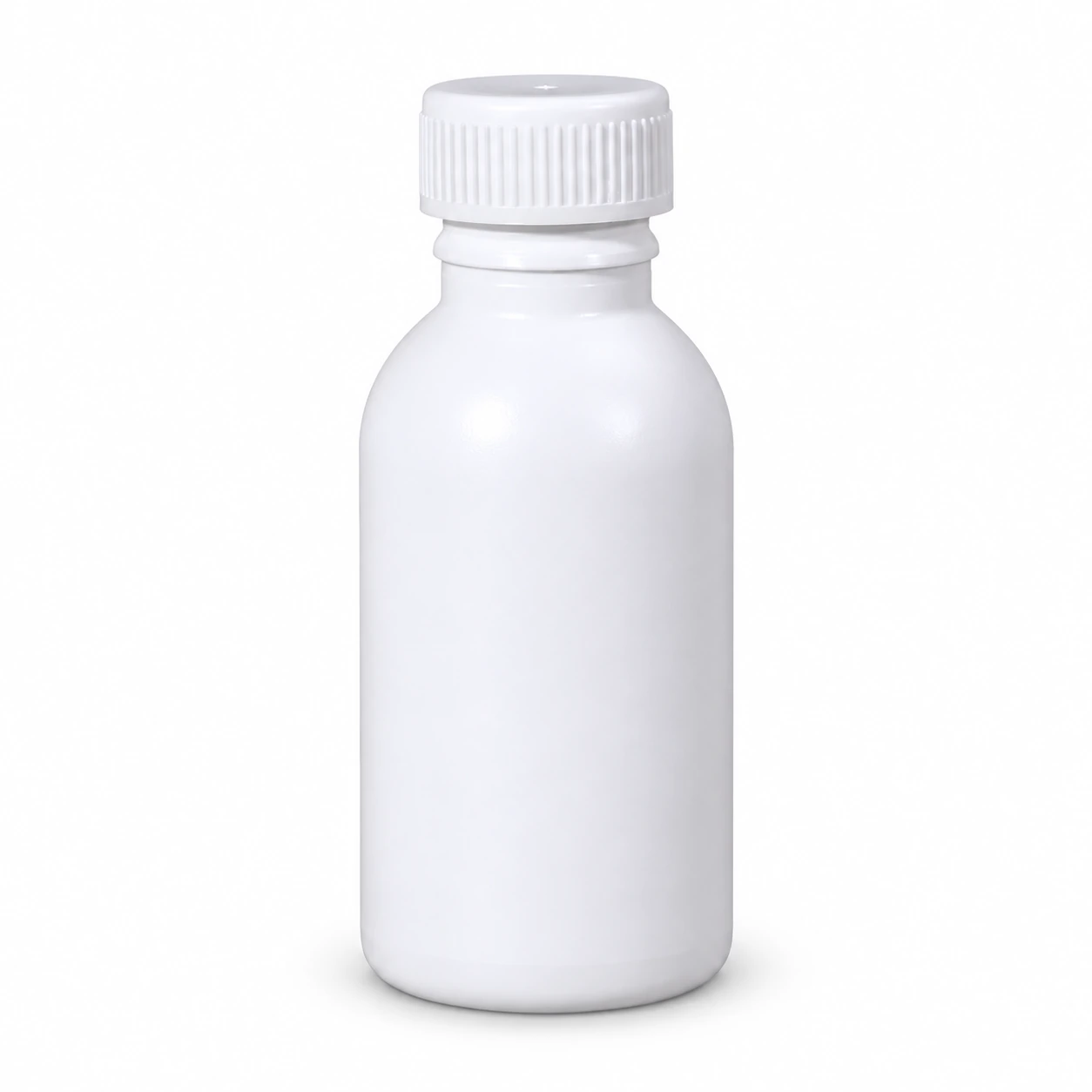

Slim-neck bottle • 100 ml: Height with cap: 110 mm; Body diameter: 45 mm; Opening inside diameter: 21 mm; Label height: 65 mm; Weight: 18 ± 3 g

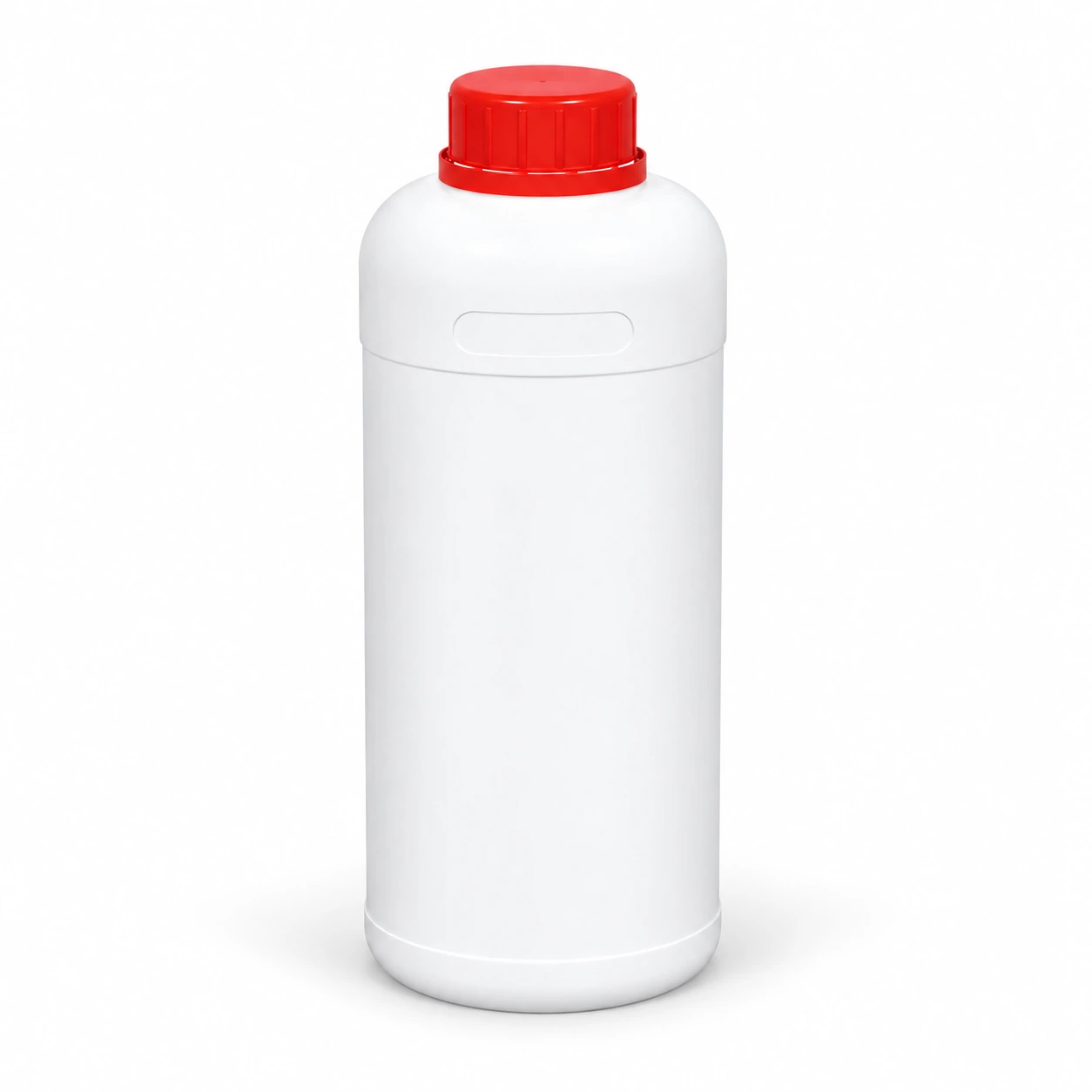

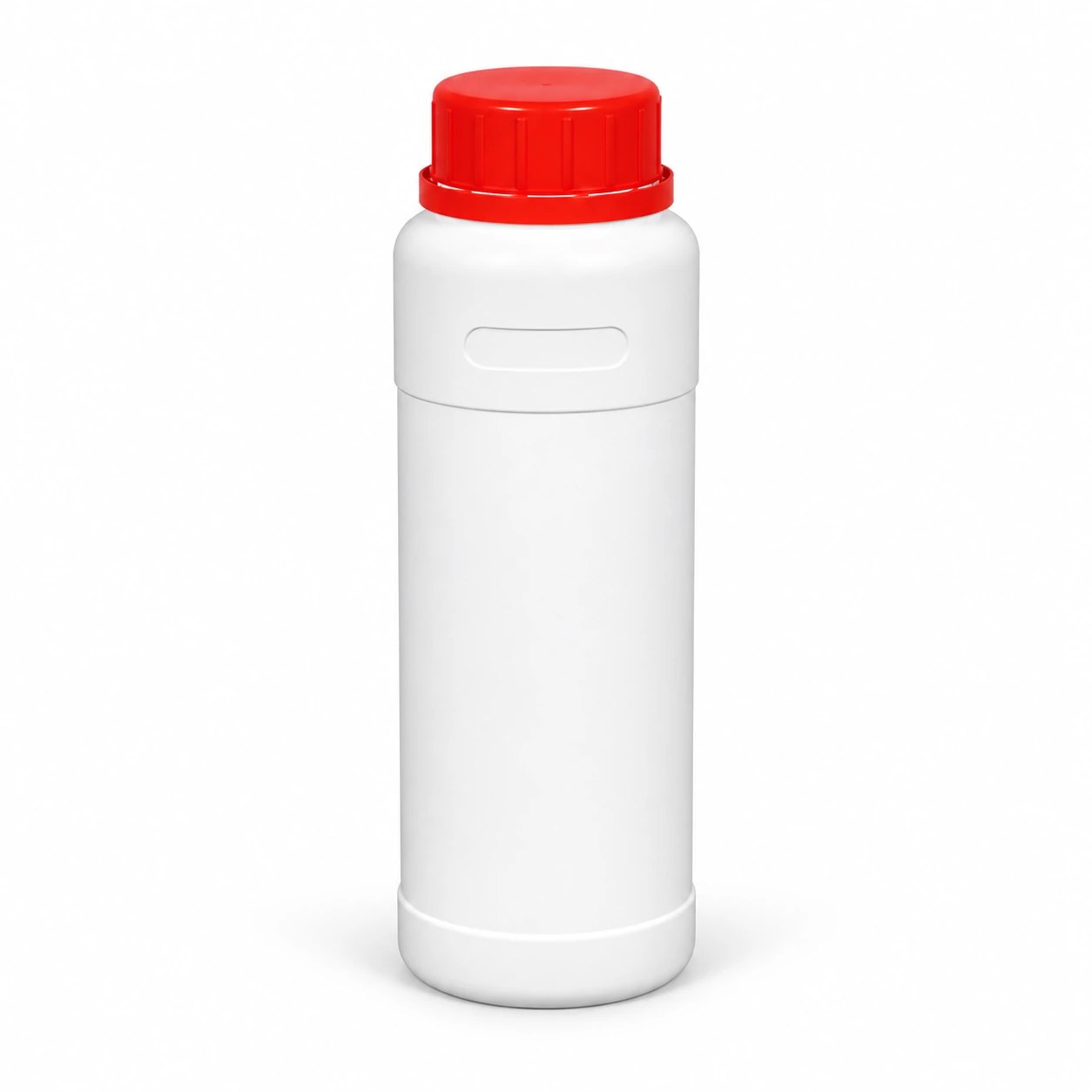

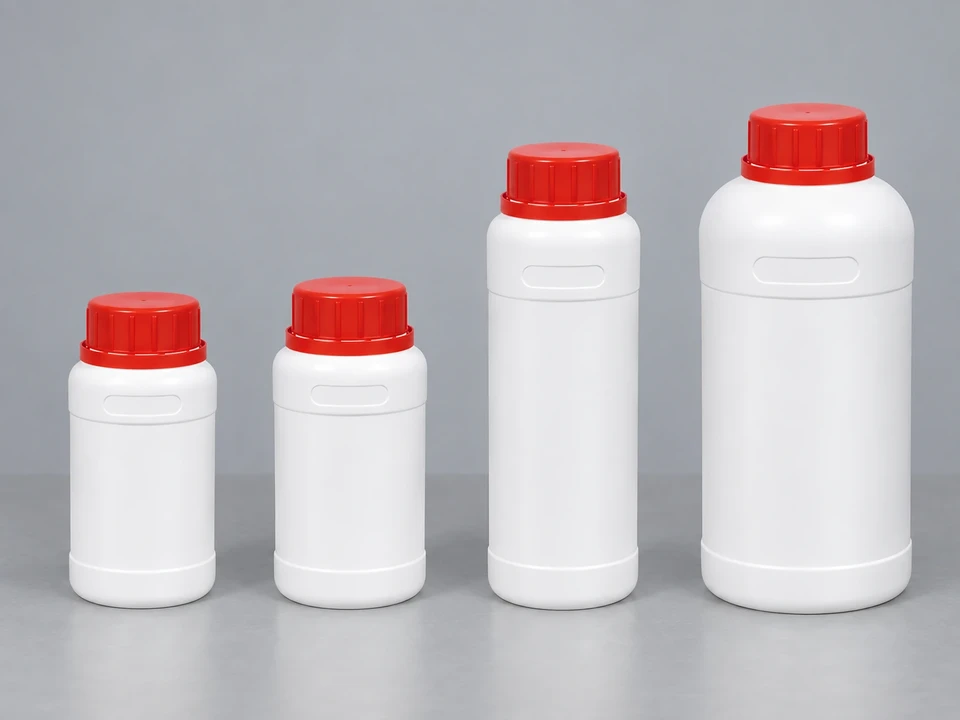

Type A coloured-cap bottles • 200 ml, red cap: Height with cap: 120 mm; Body diameter: 59 mm; Label height: 58 mm; Weight: 35 g; Pack quantity: 288 pcs • 250 ml, red or blue cap: Height with cap: 125.5 mm; Body diameter: 62 mm; Label height: 60 mm; Weight: 37 g; Pack quantity: 240 pcs • 500 ml, red or blue cap: Height with cap: 191.5 mm; Body diameter: 69 mm; Label height: 108 mm; Weight: 57 g; Pack quantity: 200 pcs • 1 L, red or blue cap: Height with cap: 220.5 mm; Body diameter: 90 mm; Label height: 140 mm; Weight: 107 g; Pack quantity: 100 pcs

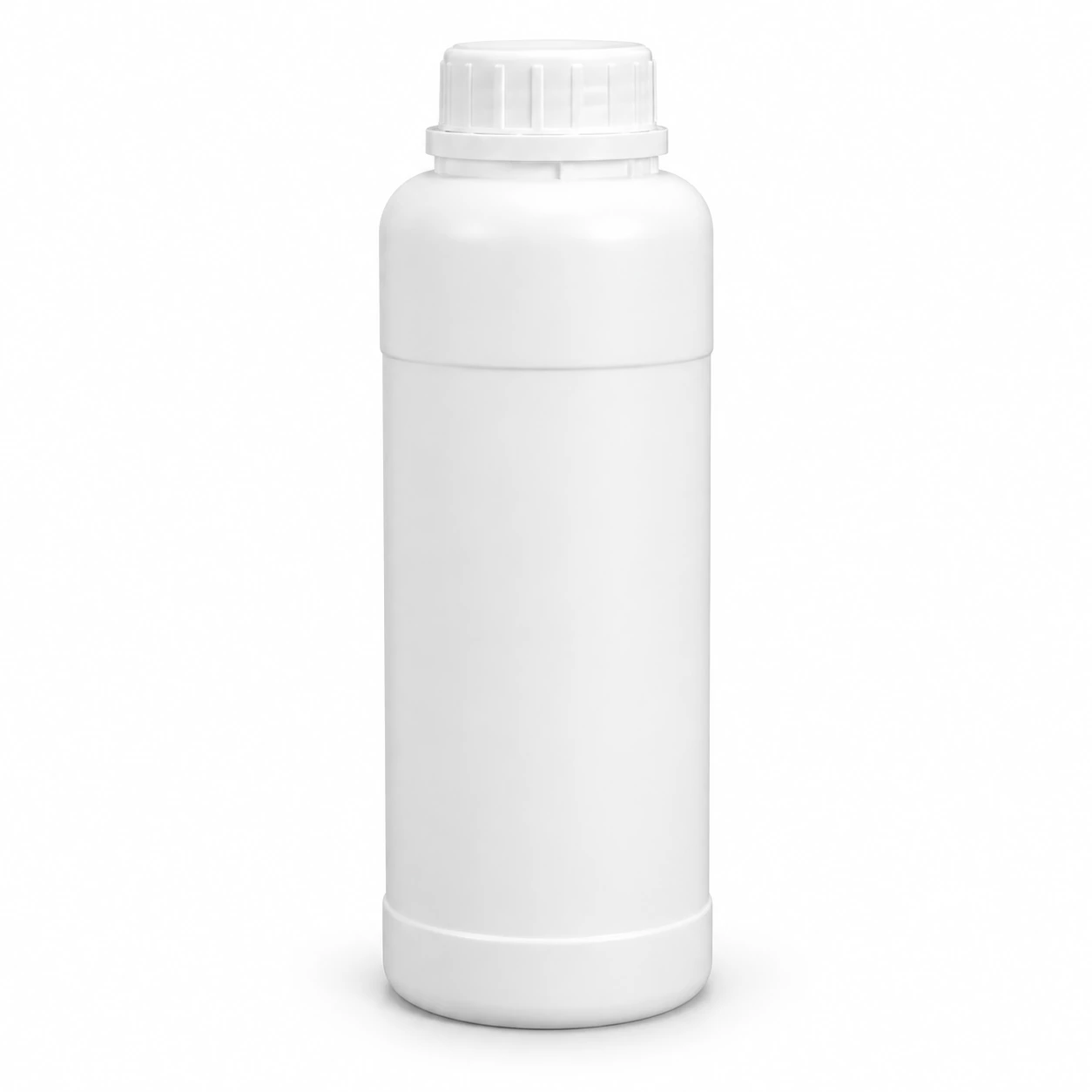

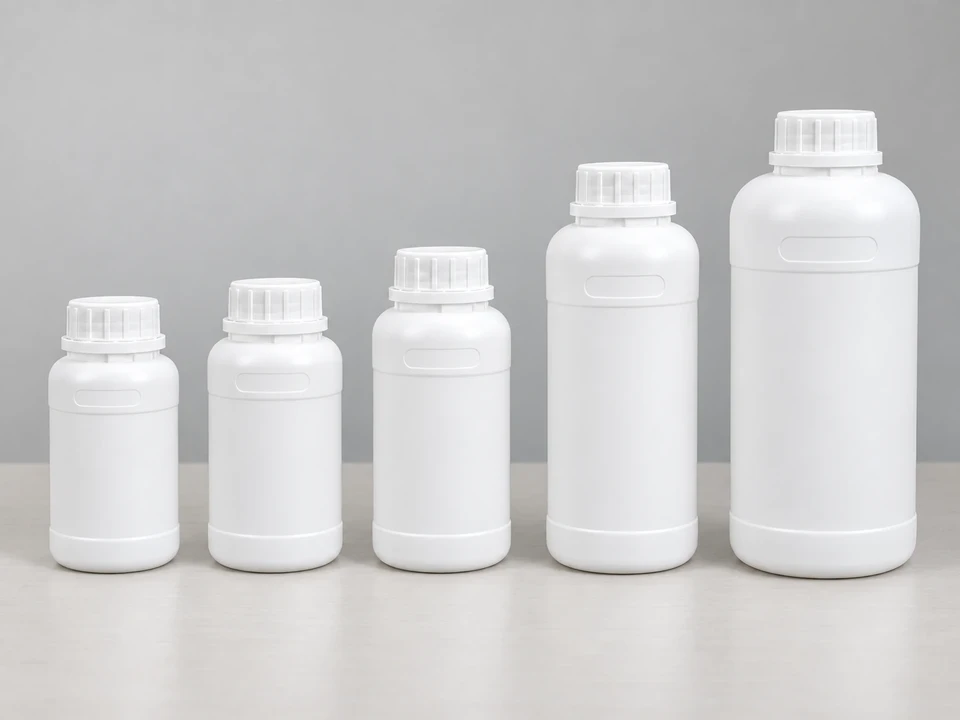

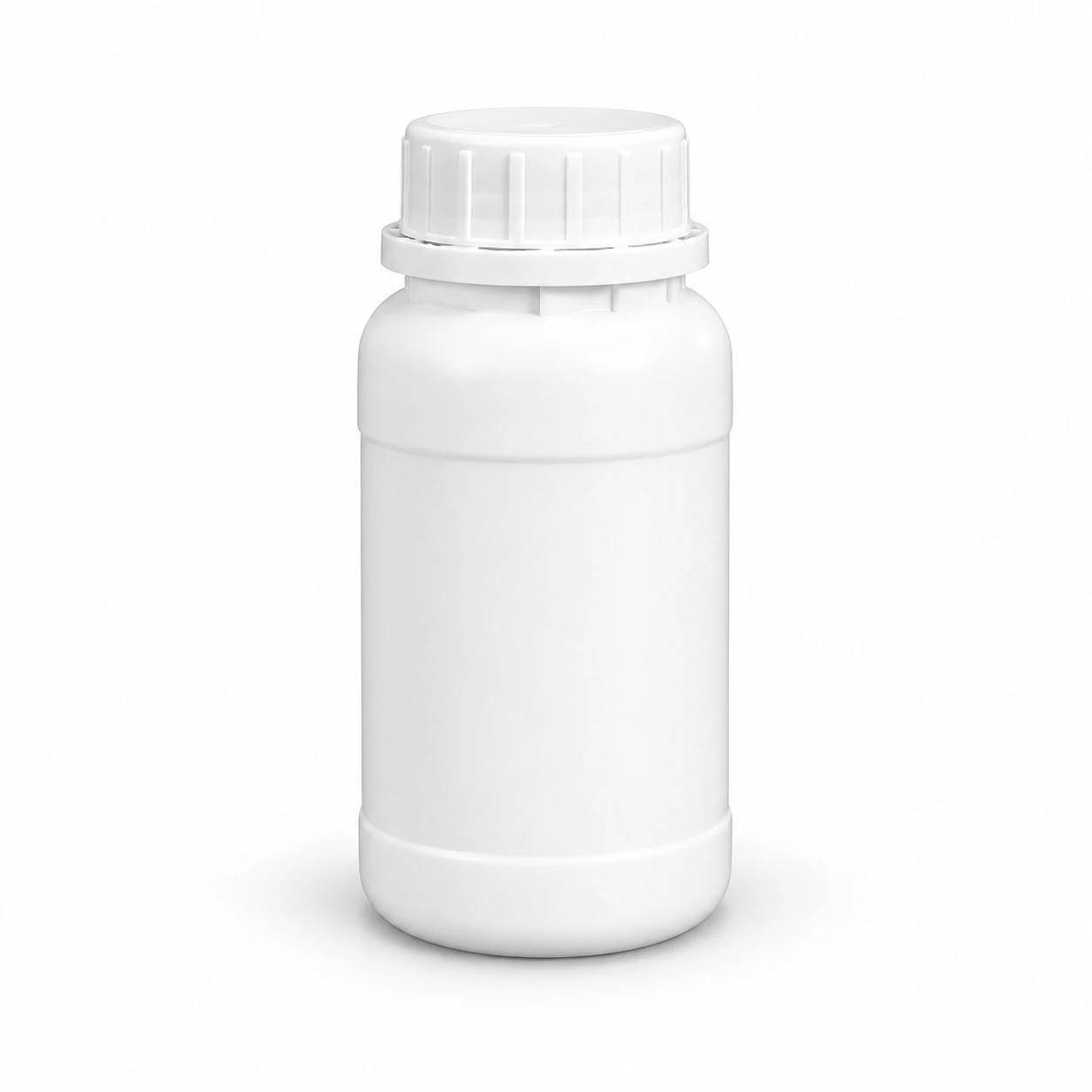

Inner-plug/white-cap cylindrical bottles • 200 ml: Height with cap: 120 mm; Body diameter: 58.6 mm; Opening inside diameter: 32.7 mm; Label height: 60 mm; Body circumference: 181 mm; Weight: 35 ± 3 g • 250 ml: Height with cap: 125 mm; Body diameter: 62.2 mm; Opening inside diameter: 32.5 mm; Label height: 60 mm; Body circumference: 194 mm; Weight: 37 ± 3 g • 300 ml • 500 ml: Height with cap: 189 mm; Body diameter: 68.5 mm; Opening inside diameter: 32.5 mm; Label height: 108 mm; Body circumference: 212 mm; Weight: 59 ± 3 g • 1,000 ml: Height with cap: 219 mm; Body diameter: 90.3 mm; Opening inside diameter: 32.5 mm; Label height: 141 mm; Body circumference: 289 mm; Weight: 105 ± 3 g

Selection and quotation

Specify the bottle format, capacity, intended contents, cap and liner/inner-plug configuration, label dimensions and order quantity. Choose the closure system together with the filling and sealing method.
