Material and manufacturing

Body material: High-density polyethylene (HDPE). Wide jar cap material: Polypropylene (PP), for the 2 L jar. Manufacturing process: HDPE blow moulding with fluorination treatment. Surface: Smooth moulded walls with defined label panels; the container geometry and closure interface follow the selected model. Closure: Wide screw closure; the tall bottle uses an aluminium-foil liner configuration.

Structures and configurations

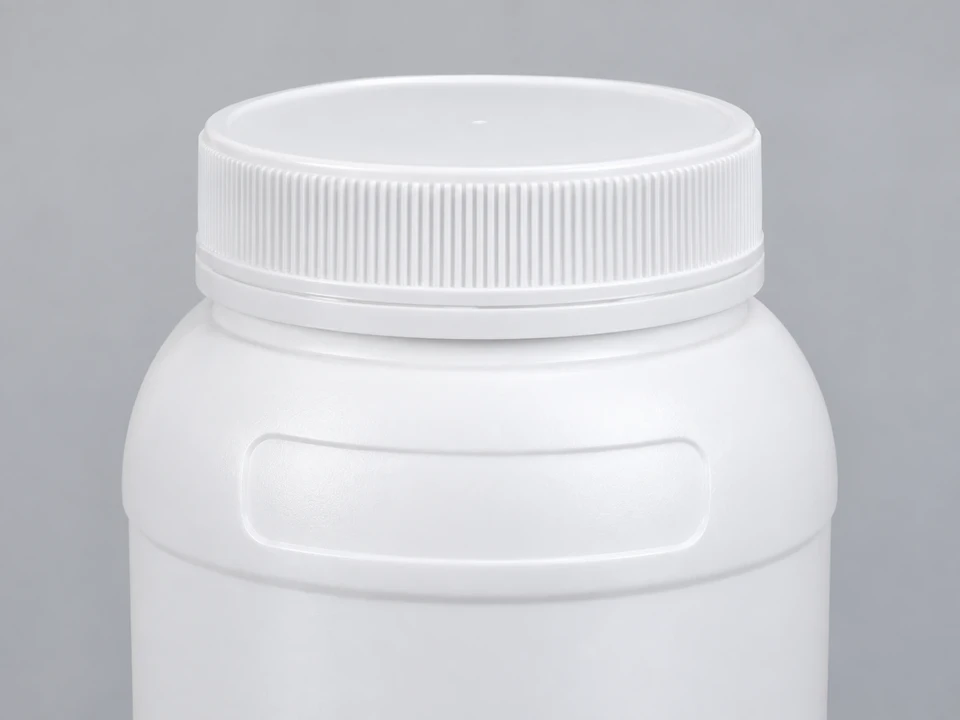

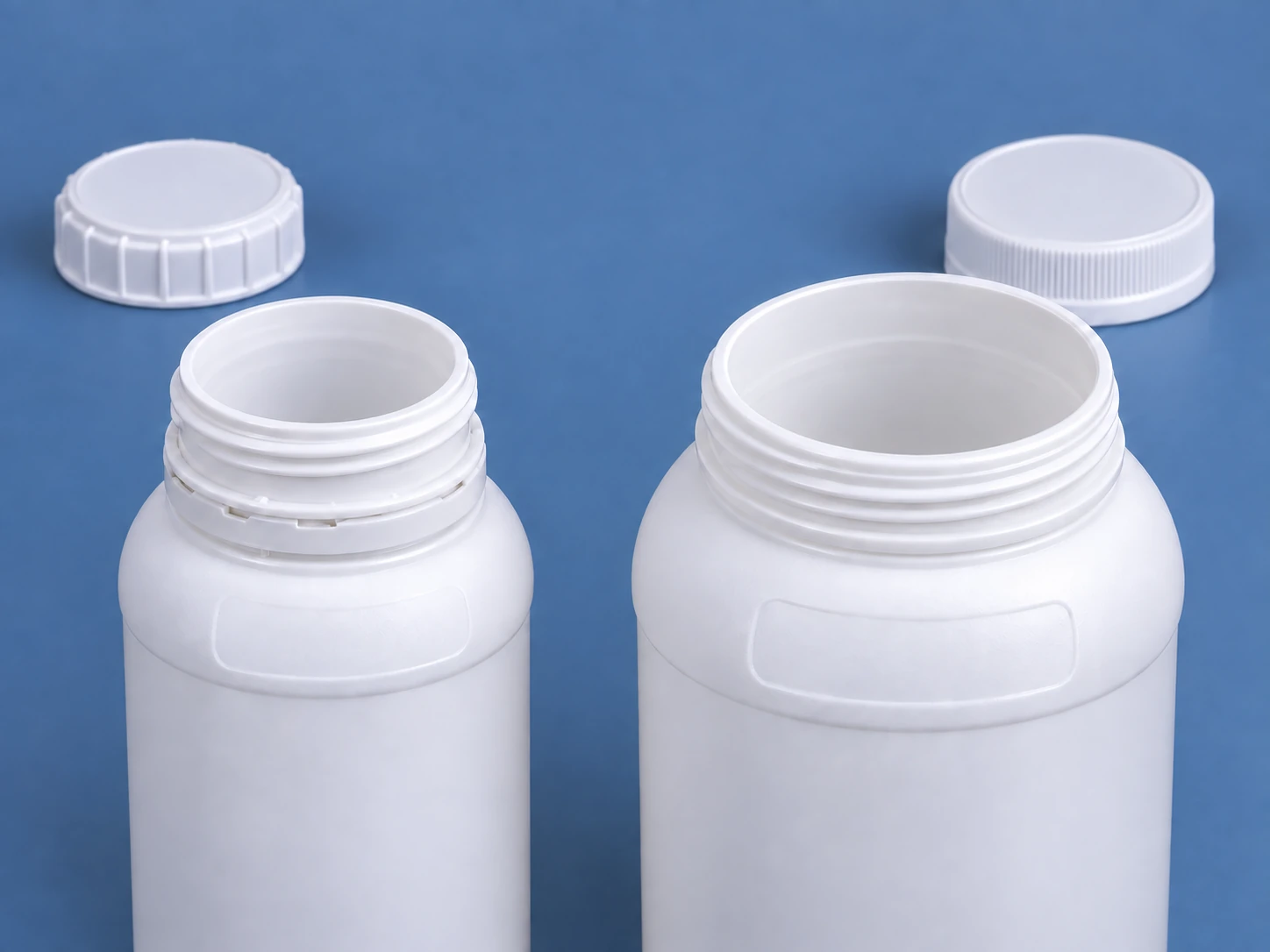

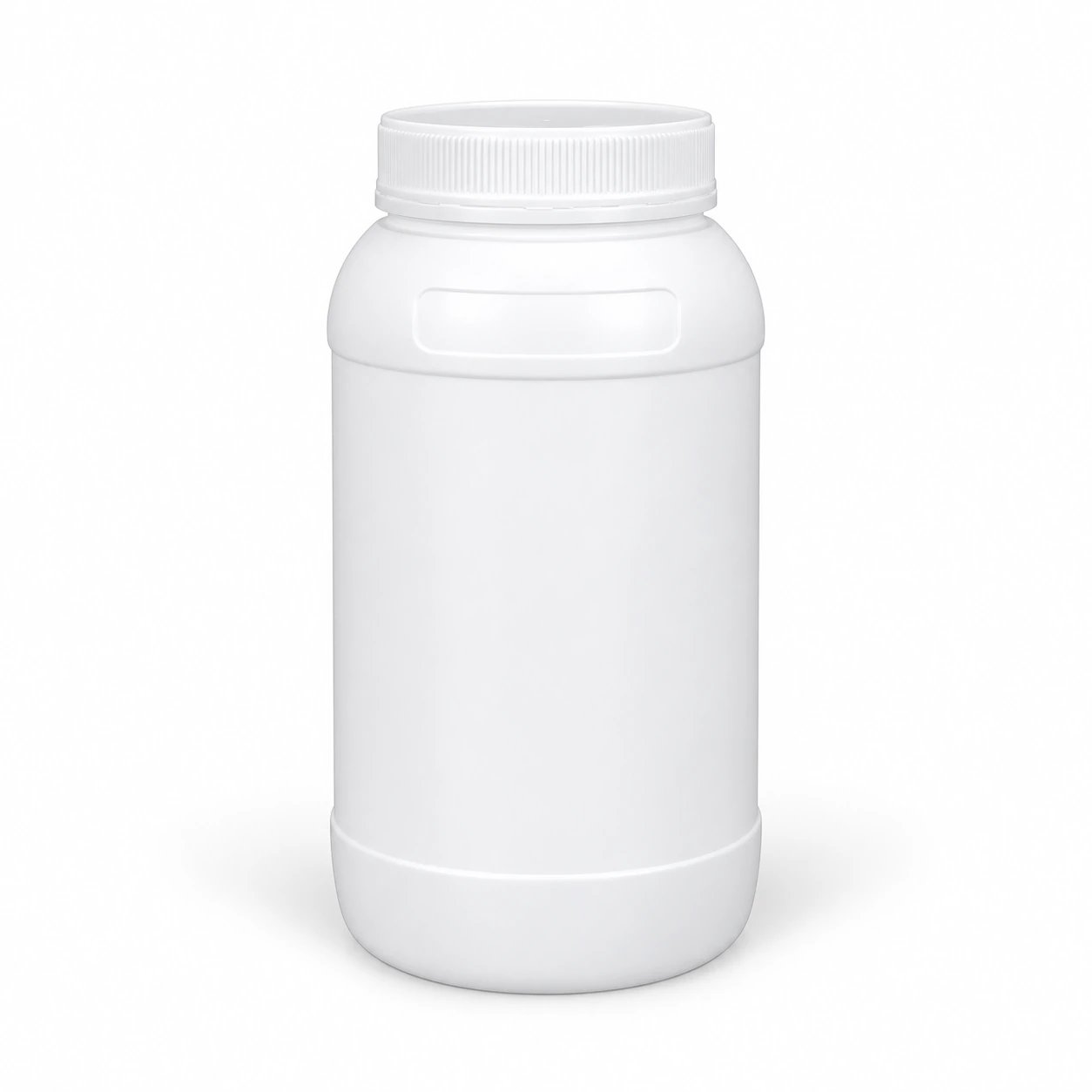

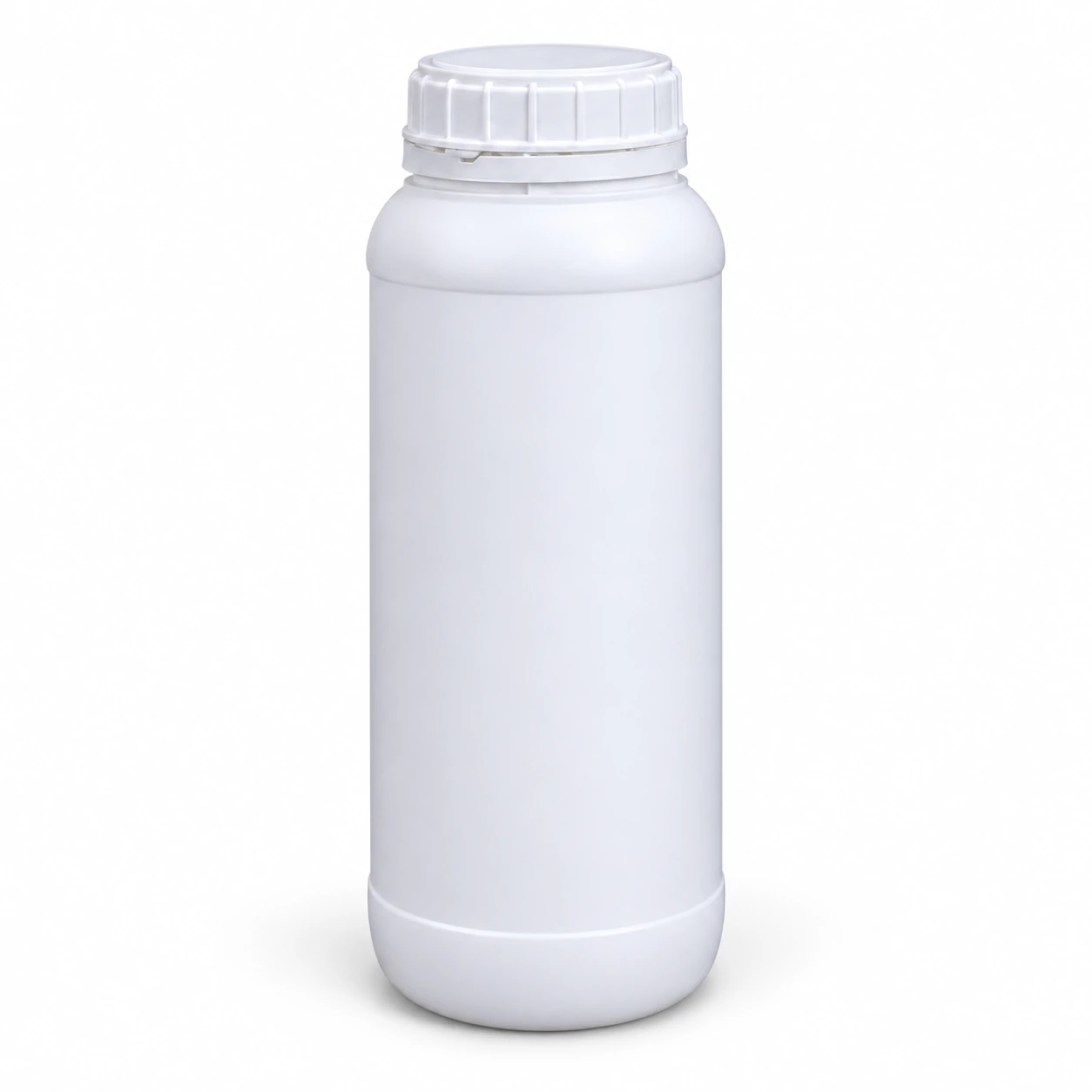

• 1 L bottle: Milky-white tall body, rounded shoulder and broad ribbed screw cap. Aluminium-foil liner configuration. • 2 L jar: Milky-white HDPE body with a PP outer lid, short rounded shoulder, moulded shoulder panel and broad label surface.

Specifications

Tall wide-mouth bottle • 1 L: Height with cap: 235 mm; Body diameter: 90 mm; Opening inside diameter: 51 mm; Label height: 156 mm; Body circumference: 288 mm; Weight: 115 ± 3 g

Broad wide-mouth jar • 2 L: Height with cap: 237 mm; Upper body diameter: 115 mm; Base diameter: 112.5 mm; Opening inside diameter: 74.5 mm; Label height: 140 mm; Weight: 138 ± 5 g; Pack quantity: 60 pcs

Selection and quotation

Provide the required format, intended contents, filling method, closure and sealing requirements, label dimensions and order quantity. Match the opening and closure to your packaging process.
