Material, surface and closure options

Body material: Plastic. Construction: Integral shoulder handle, threaded neck and broad moulded side panels. Moulded branding: Raised or recessed logos can be produced with interchangeable mould inserts on selected configurations. Closure options: Tamper-band cap, aluminium-foil/PE composite sealing liner, vented closure and matching dispensing pump. The dispensing pump is a separate optional component. Packing for the small-neck range: Dust-protection covers, inner protective bags and woven outer bags are used for bulk empty-container packing.

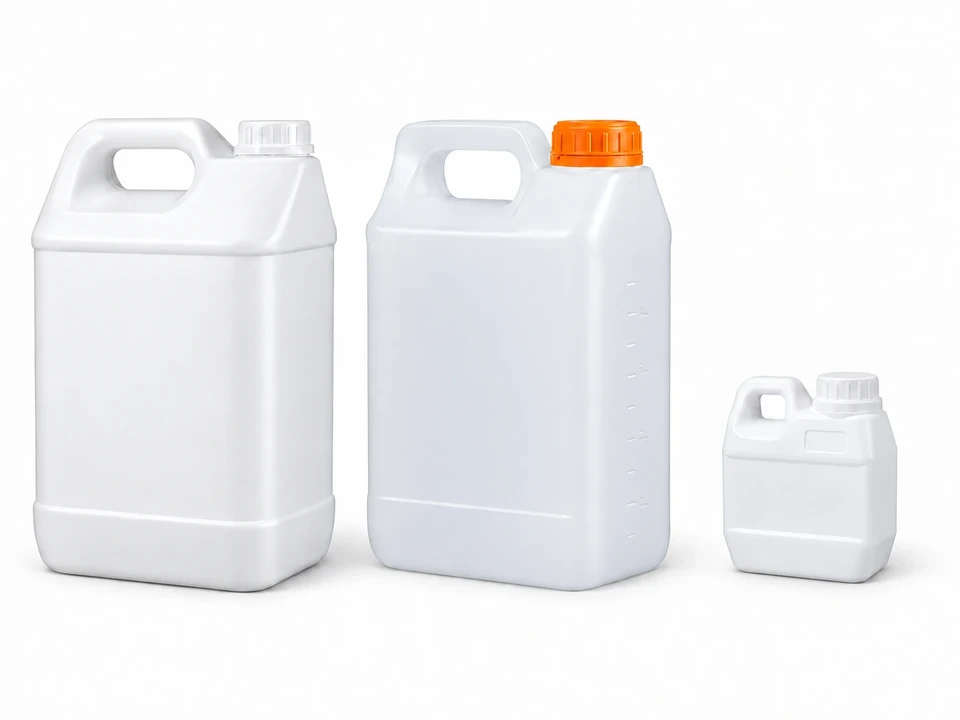

Narrow-neck range

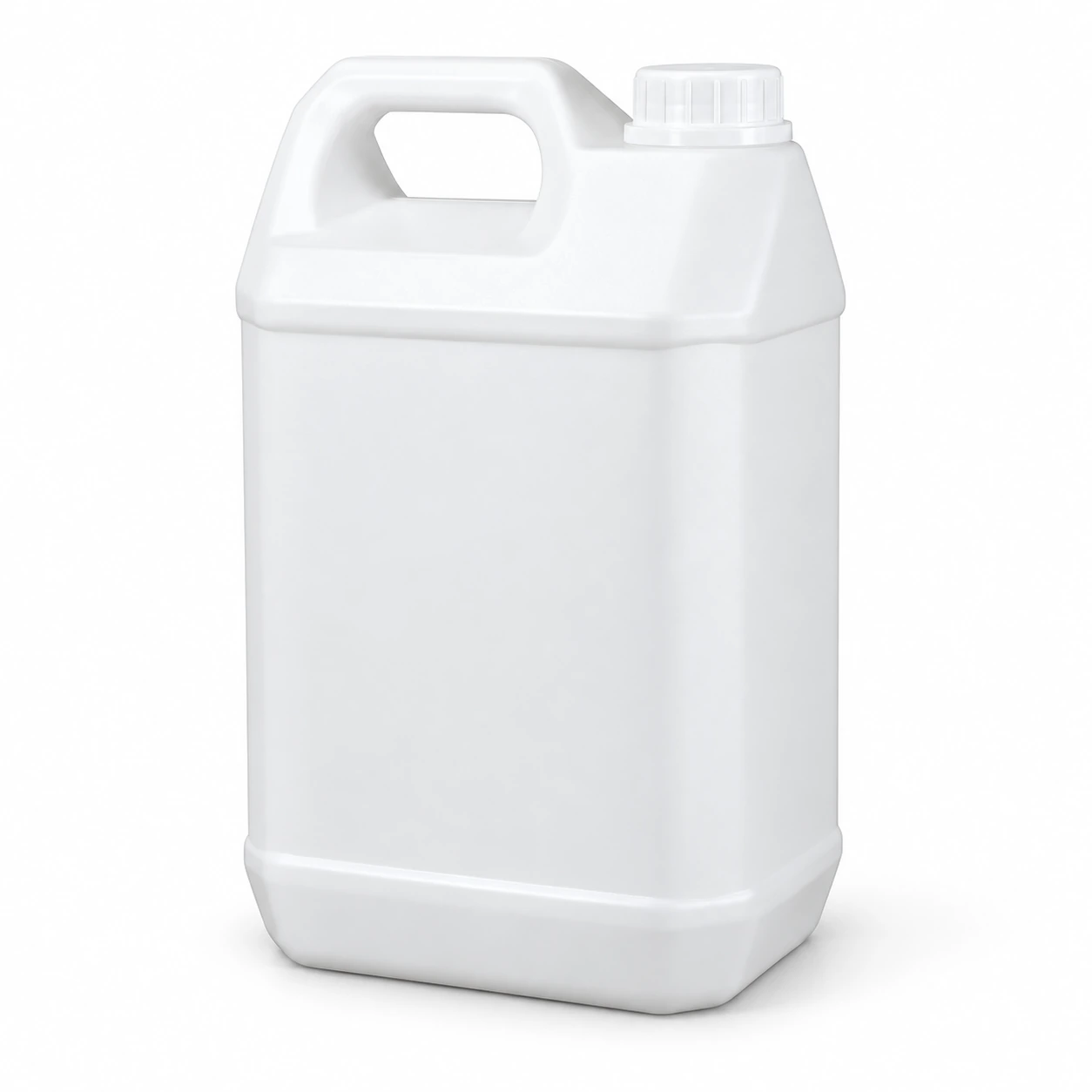

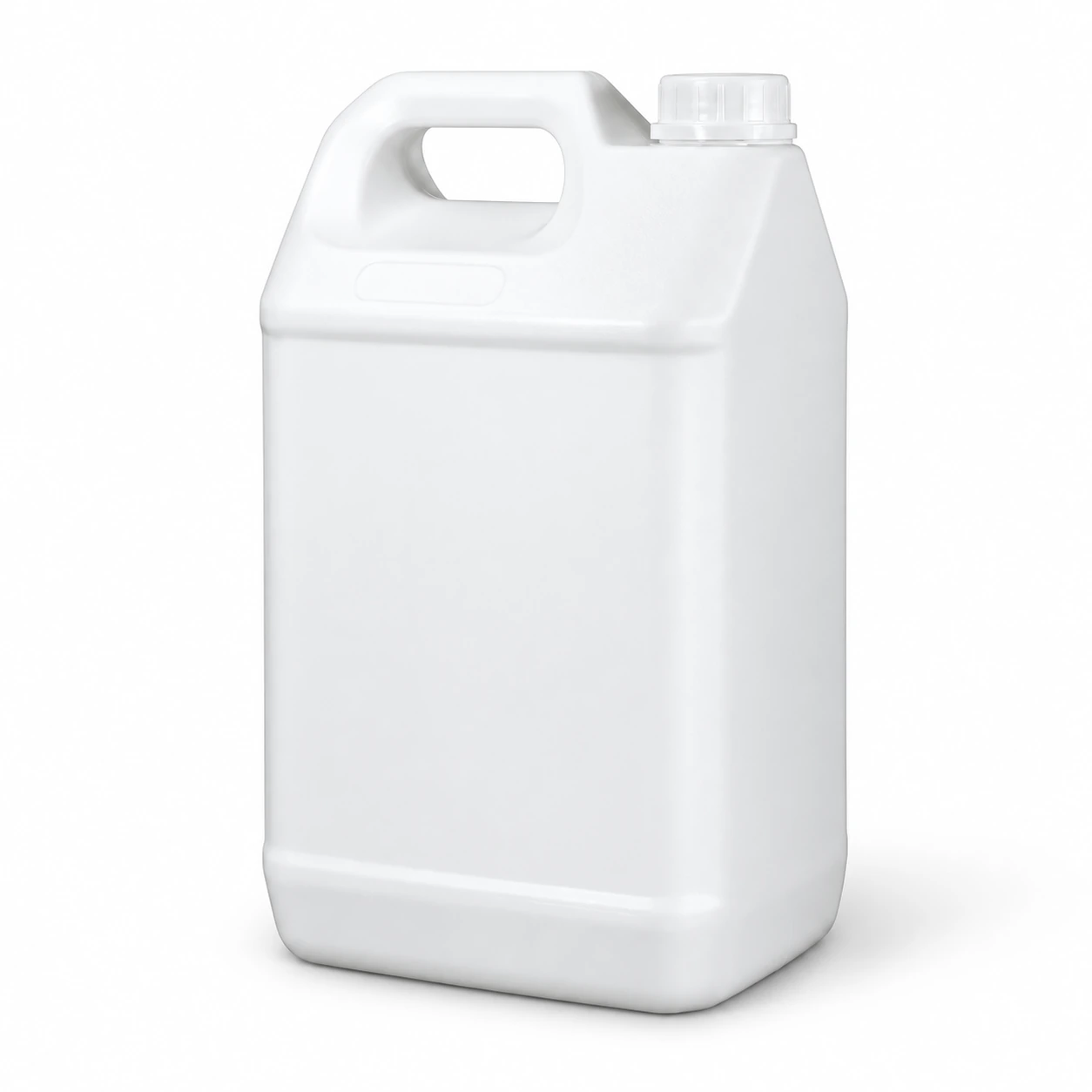

Rectangular bodies with sloping-shoulder handles and horizontal upper and lower bands. Opening inside diameter: 32.8 ± 0.2 mm. Colours: Milky white and translucent. Blue configurations are available in 5 L and 10 L.

Capacity and specifications

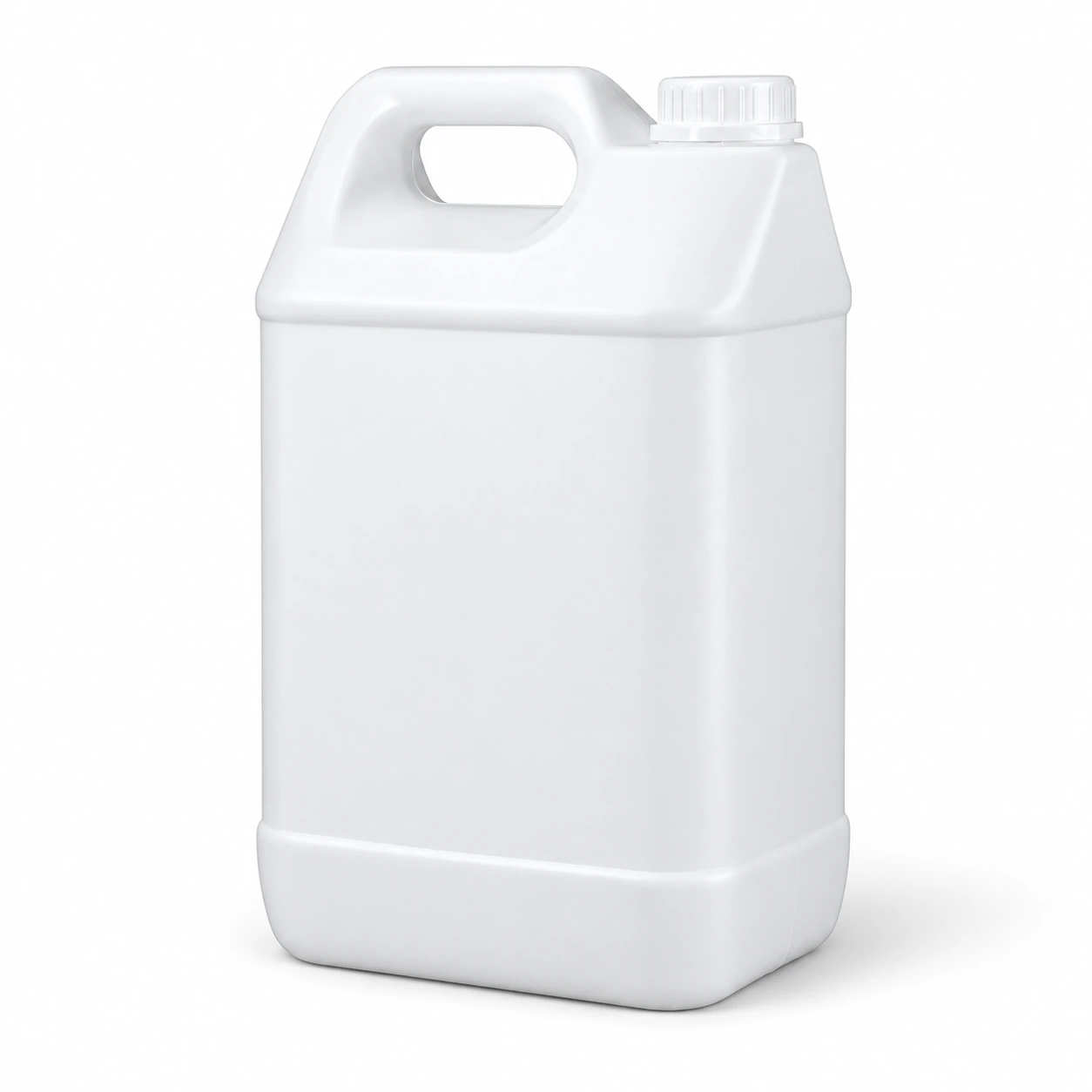

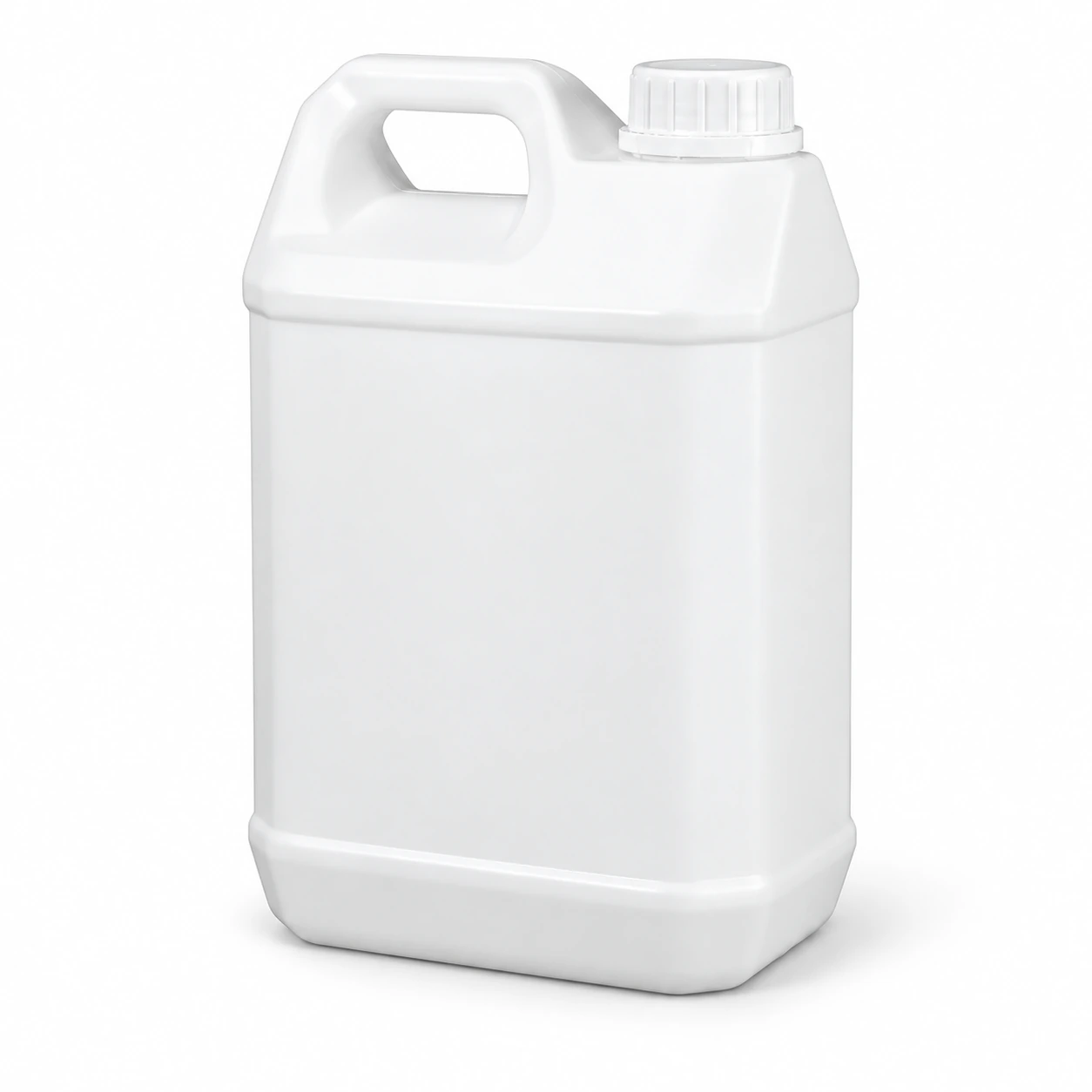

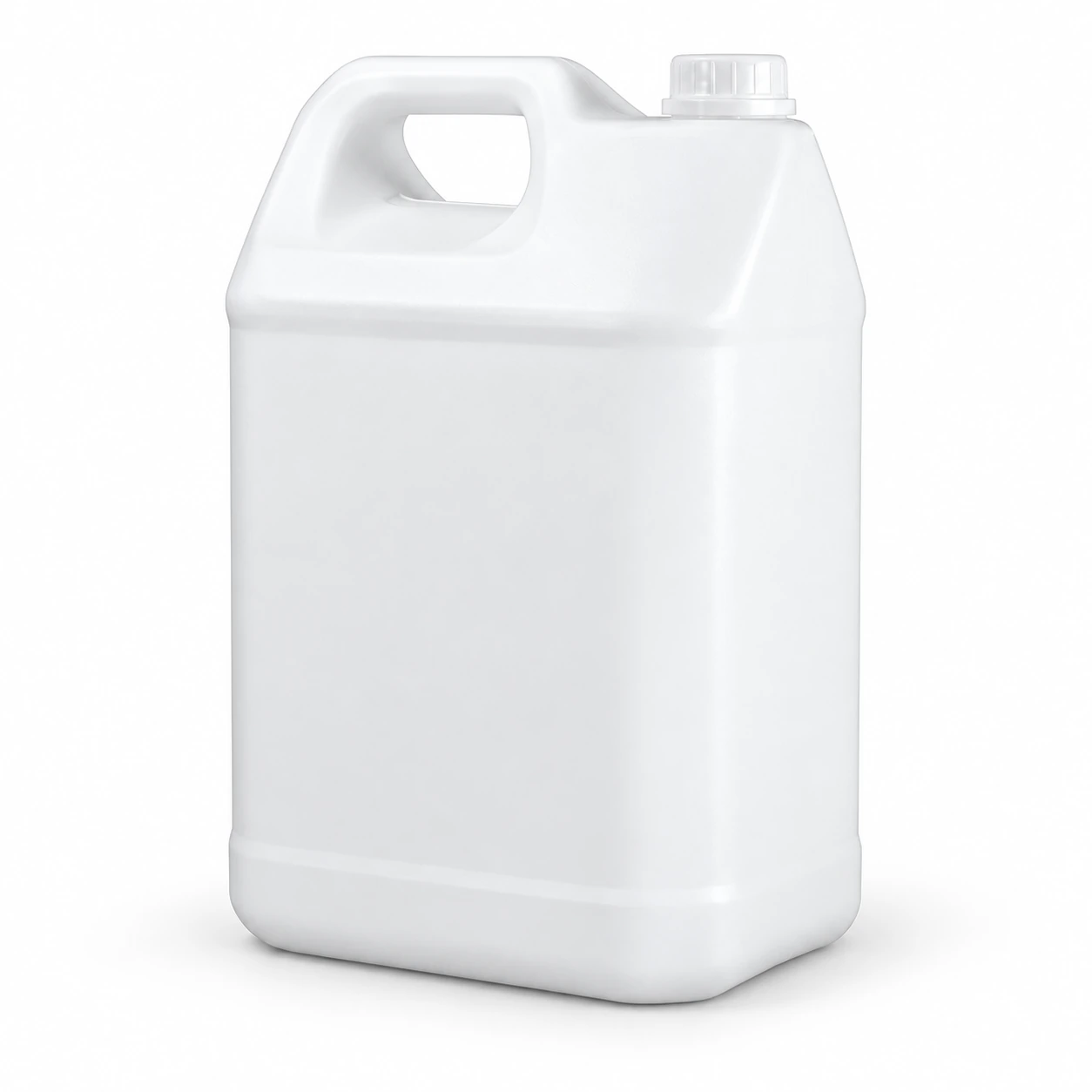

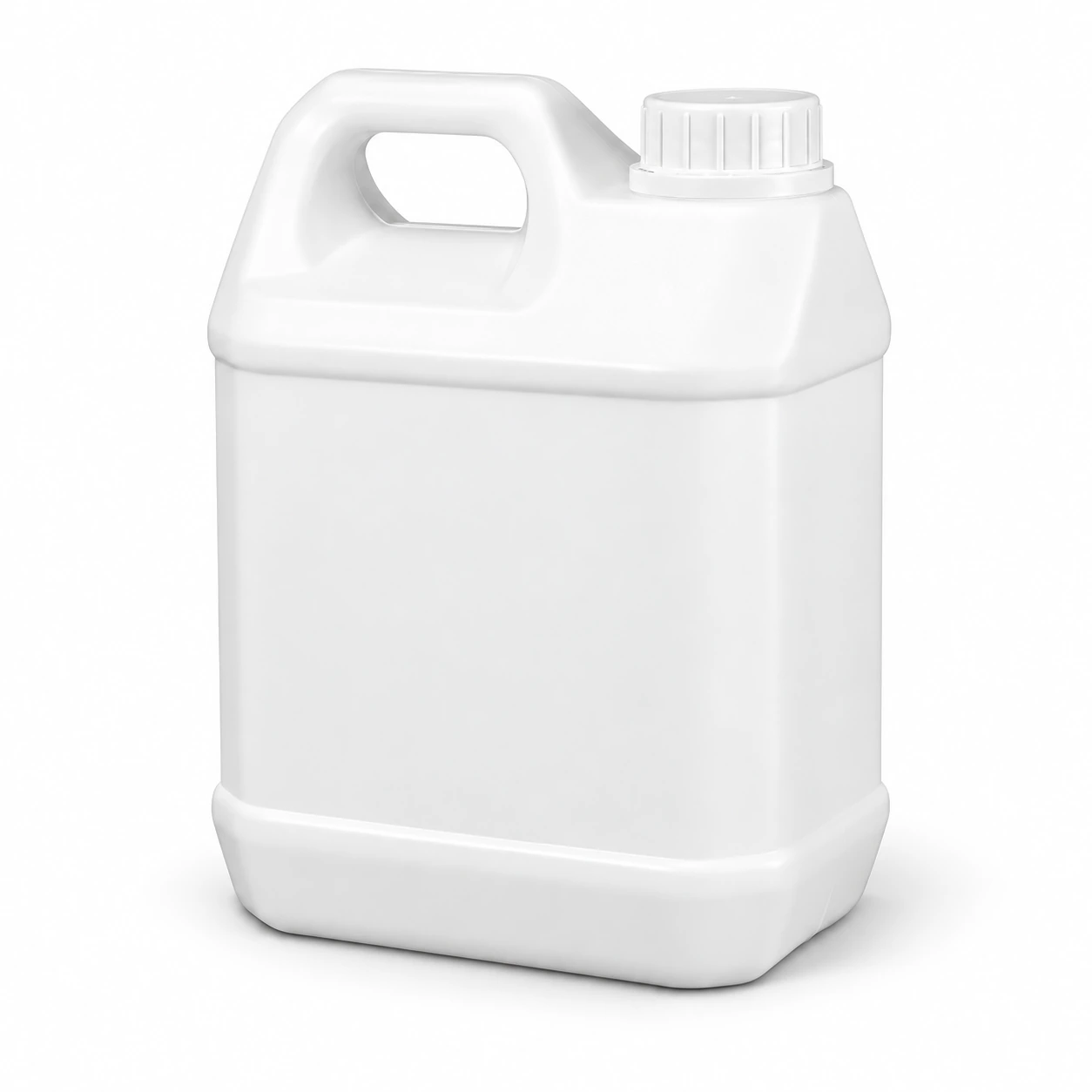

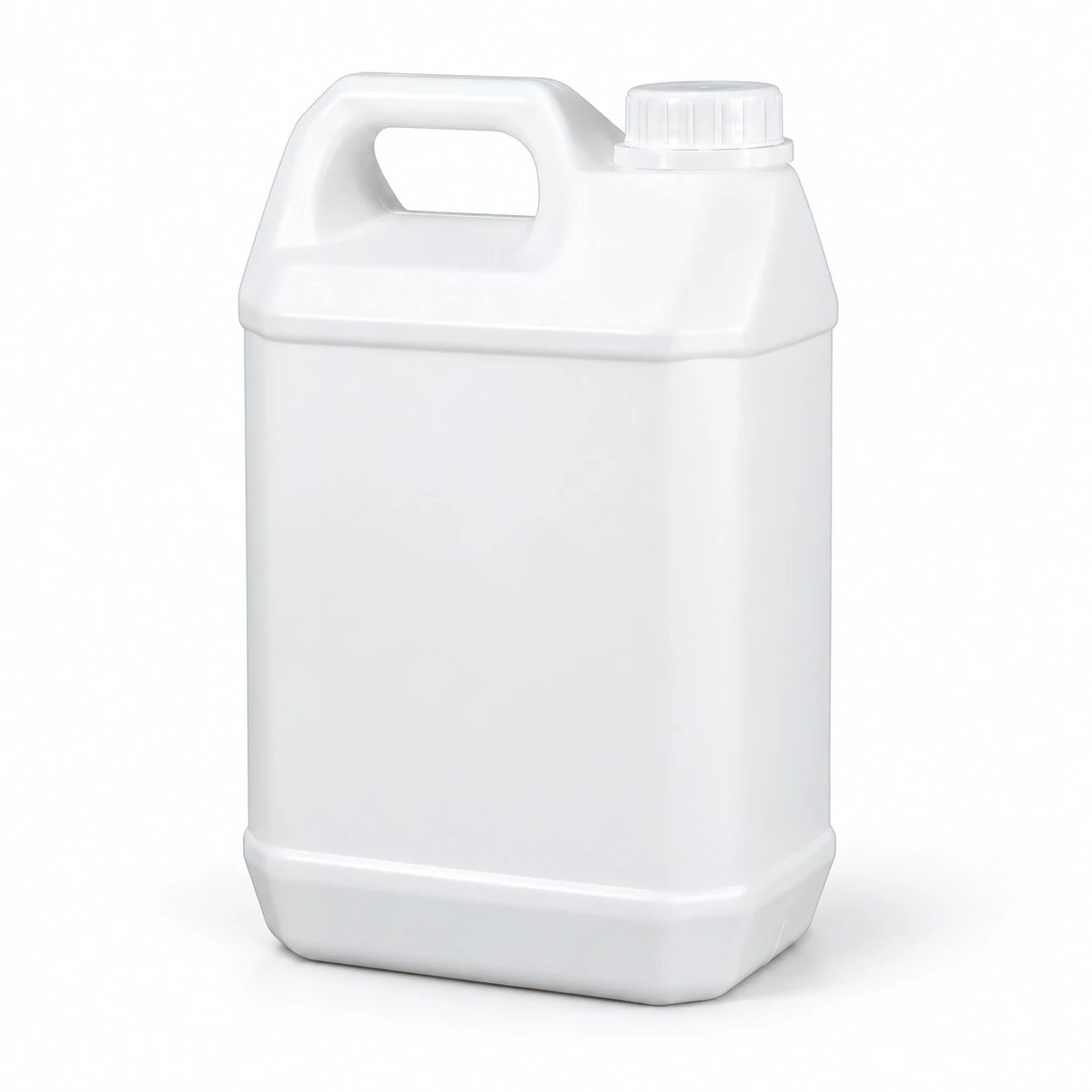

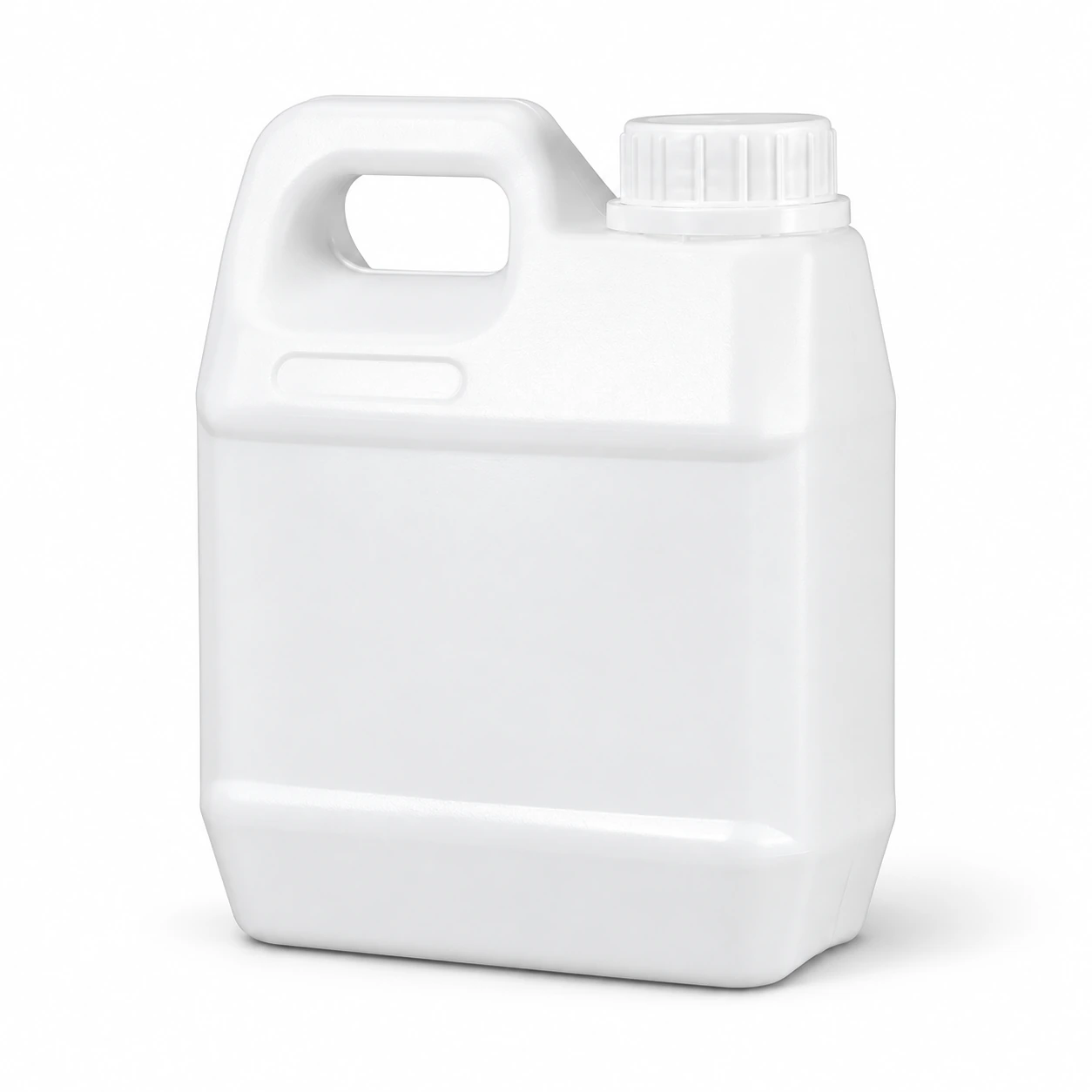

Dimensions are length × width × height. • 1 L: Pack quantity 48 pcs. • 2 L: 157 × 104 × 203 mm; pack quantity 56 pcs. • 2.5 L: 154 × 102 × 230 mm; weight 136.5 ± 3.5 g; pack quantity 50 pcs. • 3 L: 155 × 110 × 255 mm; weight 156.5 ± 3 g; pack quantity 42 pcs. • 4 L: 170 × 120 × 280 mm; weight 186.5 ± 3.5 g; pack quantity 36 pcs. • 5 L: 181.5 × 130 × 305 mm; pack quantity 36 pcs. • 6 L: 180 × 150 × 312 mm; weight 246.5 ± 3.5 g; pack quantity 32 pcs. • 10 L, milky white: 235 × 170 × 355 mm; pack quantity 16 pcs. • 10 L, blue: 233 × 175 × 356.8 mm; pack quantity 16 pcs.

Wide-neck graduated configuration

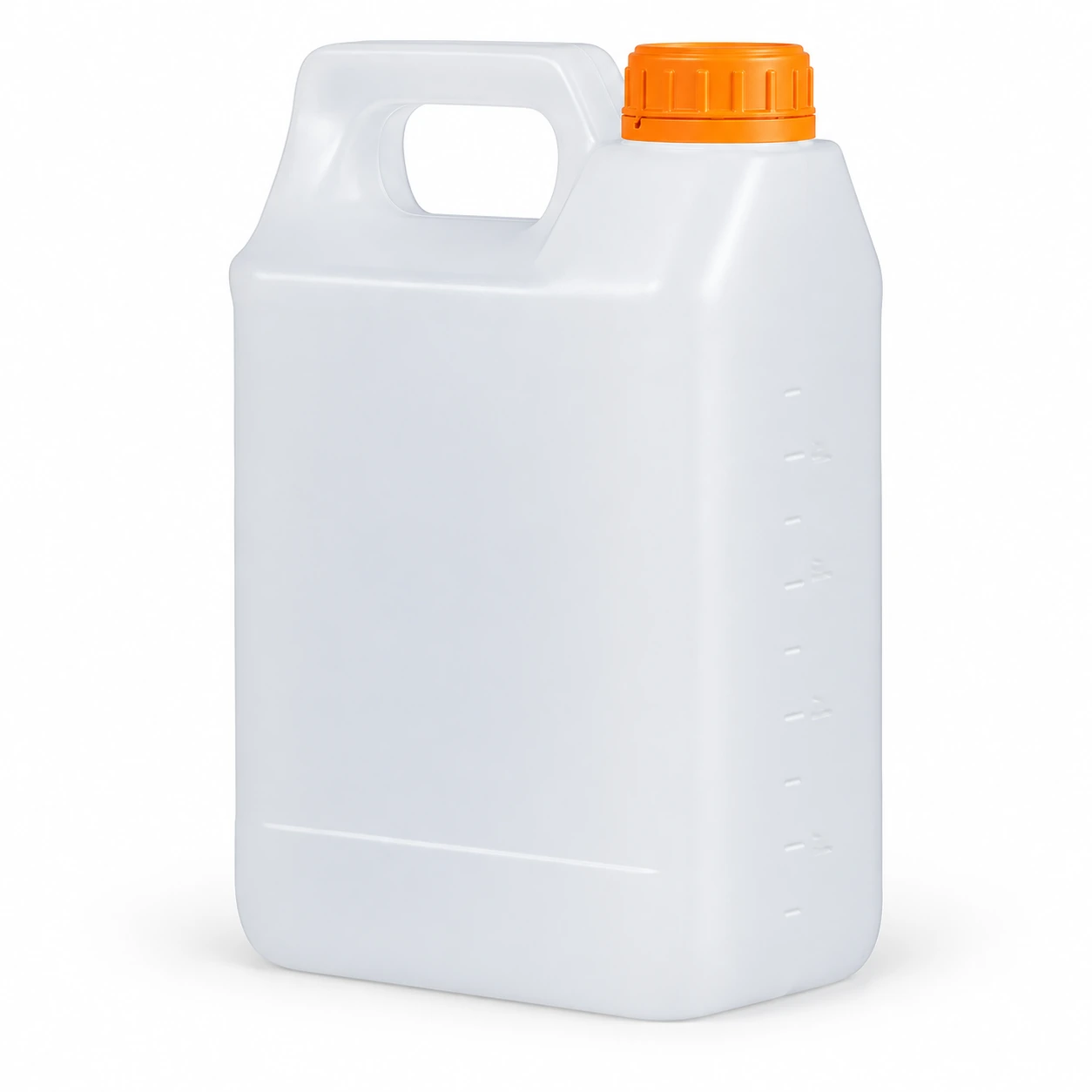

A 5 L translucent jerrycan with an orange cap, integral shoulder handle, flat side panels and moulded level graduations. Dimensions: 196.49 × 126.65 × 298.92 mm. Opening inside diameter: 41.2 ± 0.2 mm. Label height: 157 mm. Weight: 252 ± 3.5 g. Pack quantity: 30 pcs.

Mini thick-wall configuration

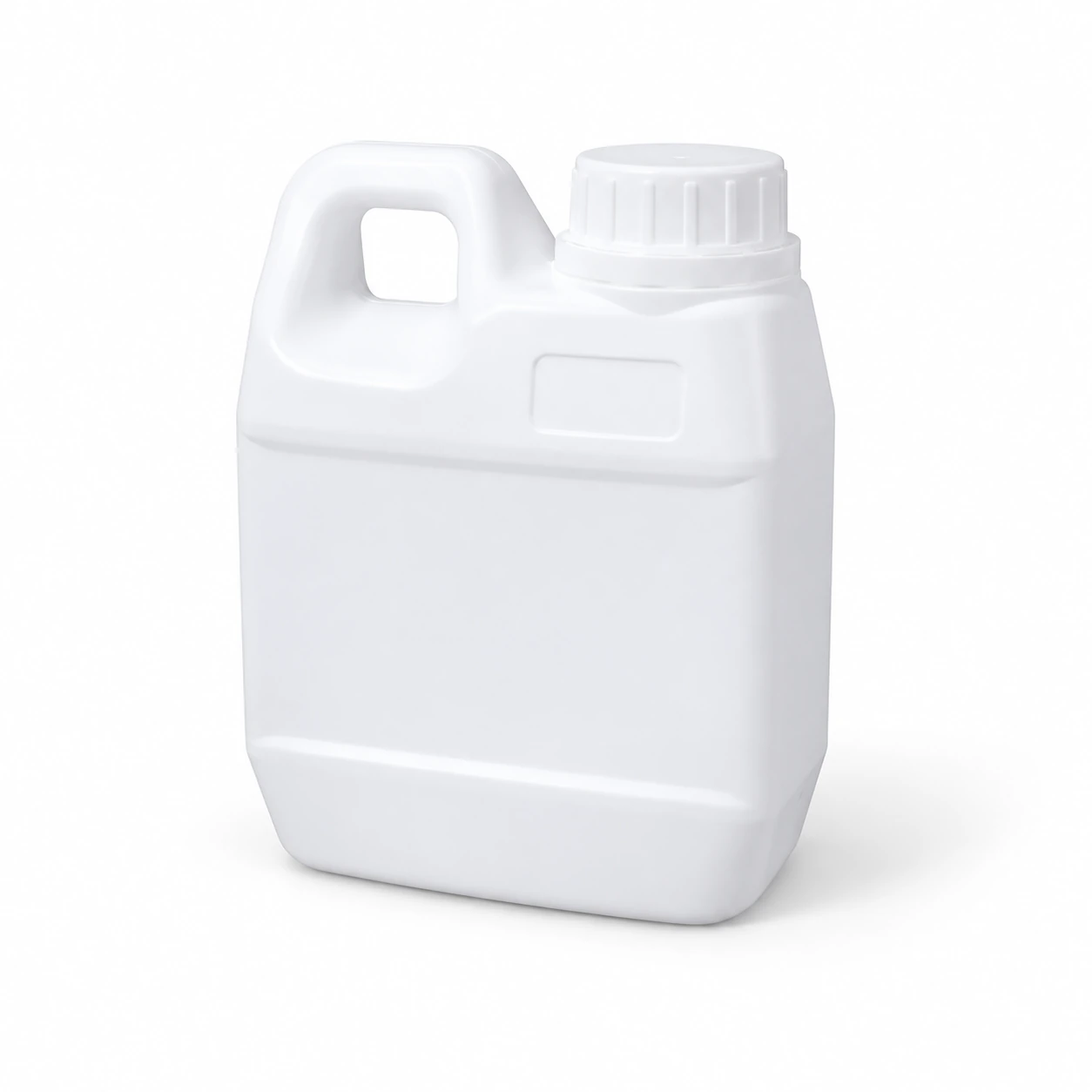

A 0.5 L compact rectangular jerrycan with a small integral through-handle, available in white or translucent. Dimensions: 108.5 × 57.84 × 139.1 mm. Opening inside diameter: 30.17 ± 0.2 mm. Weight: 50 g. Pack quantity: 91 pcs.

Closure and identification options

Selected configurations offer embossed or recessed logo panels, tamper-band closures, aluminium-foil/PE composite sealing liners, dispensing pumps, vented caps and cap-opening tools. Pumps are optional accessories matched to the chosen container configuration.

For selection and quotation, provide the required capacity, body colour, intended contents, closure or dispensing requirements, label dimensions and quantity.
